Configure workflow settings post transport release

Problem

PPP workflow may not execute correctly due to missing user setup, incomplete workflow customizing, or inconsistent configuration of workflow definitions.

Environment

SAP system with PPP workflow (WS00394100 / WS00394101) deployed.

Prerequisites

Access to SAP transactions SU01, SWU3, and SWDD
Authorization to create users, assign roles/profiles, and execute workflow customizing
PPP workflow transports available in the system

Reason

Workflow runtime issues typically occur when:

The WF-BATCH system user is not properly configured
Workflow customizing has not been executed or is incomplete
Required PPP workflow transports are missing
Agent assignment or event bindings are not correctly set

Solution

Step 1: Create Workflow Batch User

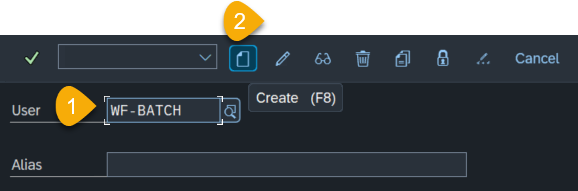

Go to transaction SU01 and create user WF-BATCH

Maintain required fields (title, last name)

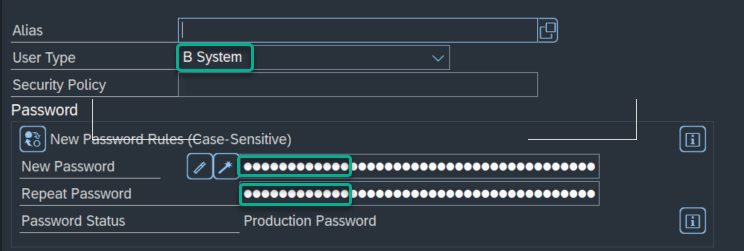

Set user type to System and define an initial password

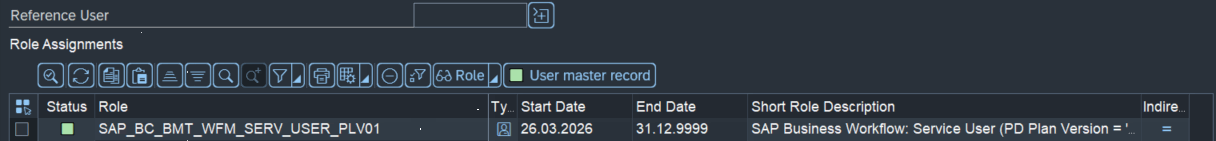

Assign role SAP_BC_BMT_WFM_SERV_USER_PLV01

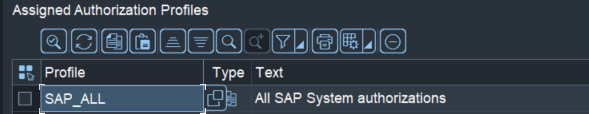

Assign profile SAP_ALL

Save the user

Step 2: Execute Auto-Customizing for Workflow

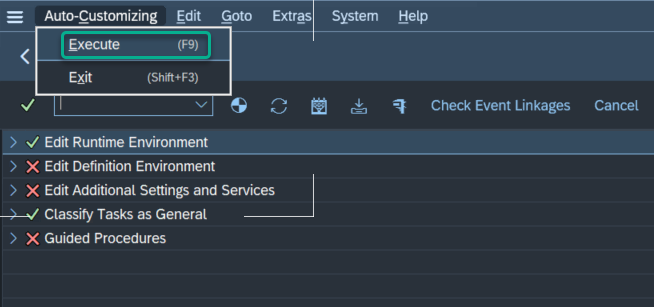

Go to transaction SWU3
Choose Auto-Customizing → Execute Automatic Workflow Customizing

Accept all prompted settings

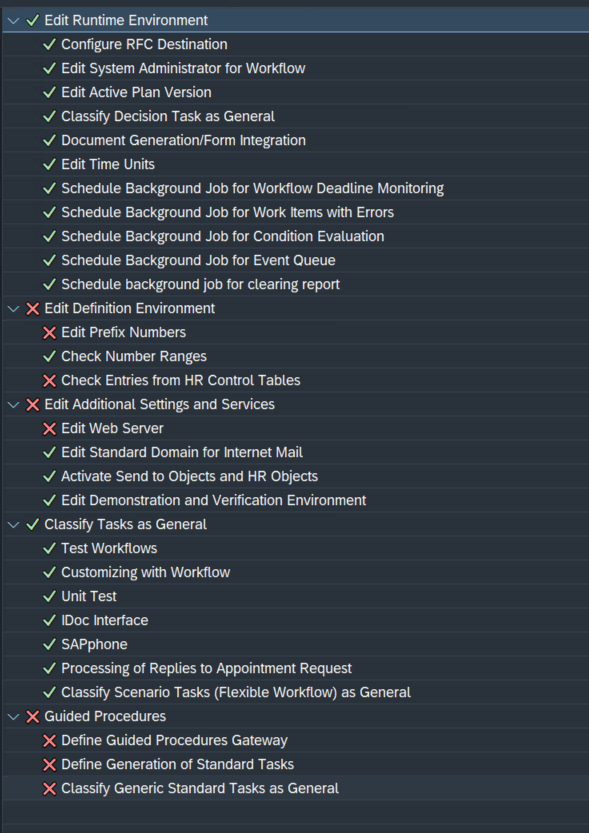

Verify that key indicators (especially Runtime Environment and Classify Tasks as General) are green
Minor non-green items in other sections are acceptable

Step 3: Perform PPP Workflow Prechecks

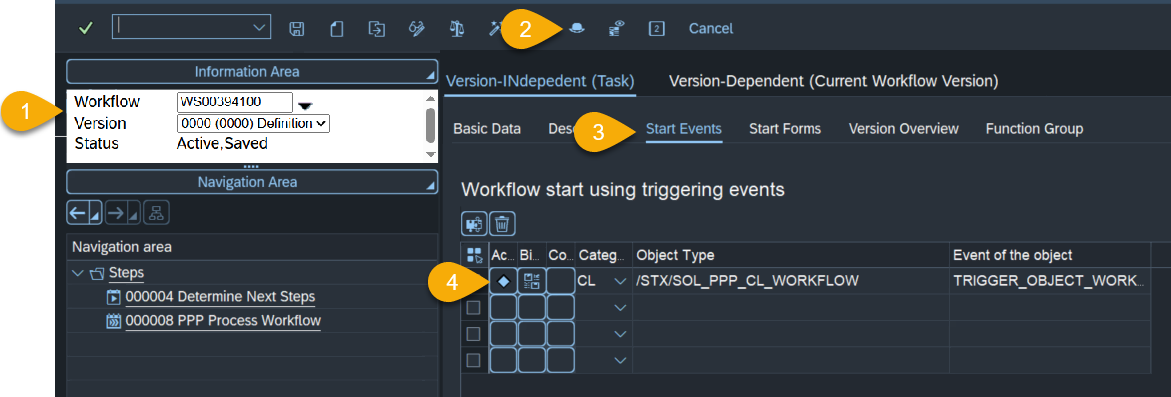

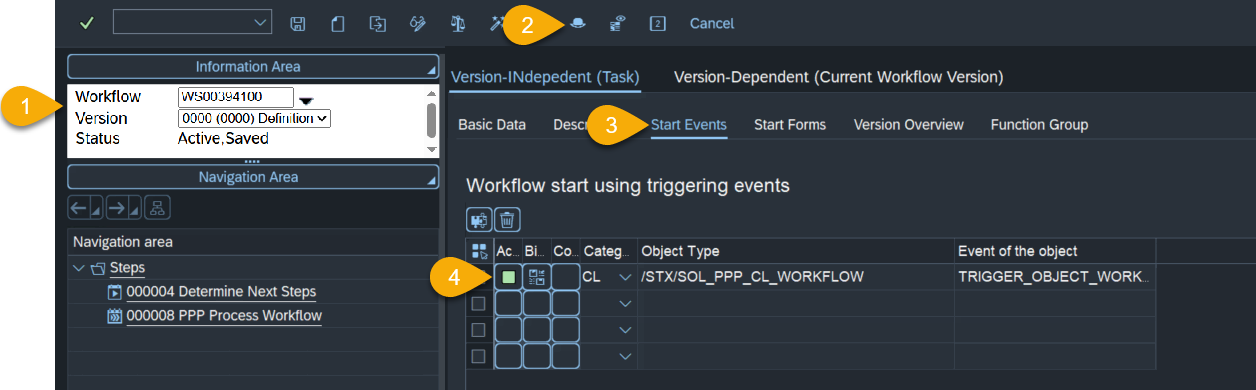

In transaction SWDD, open main workflow WS00394100 (version 0000)
- Verify start event binding is green

*   If not, ensure the relevant PPP customizing transport has been imported

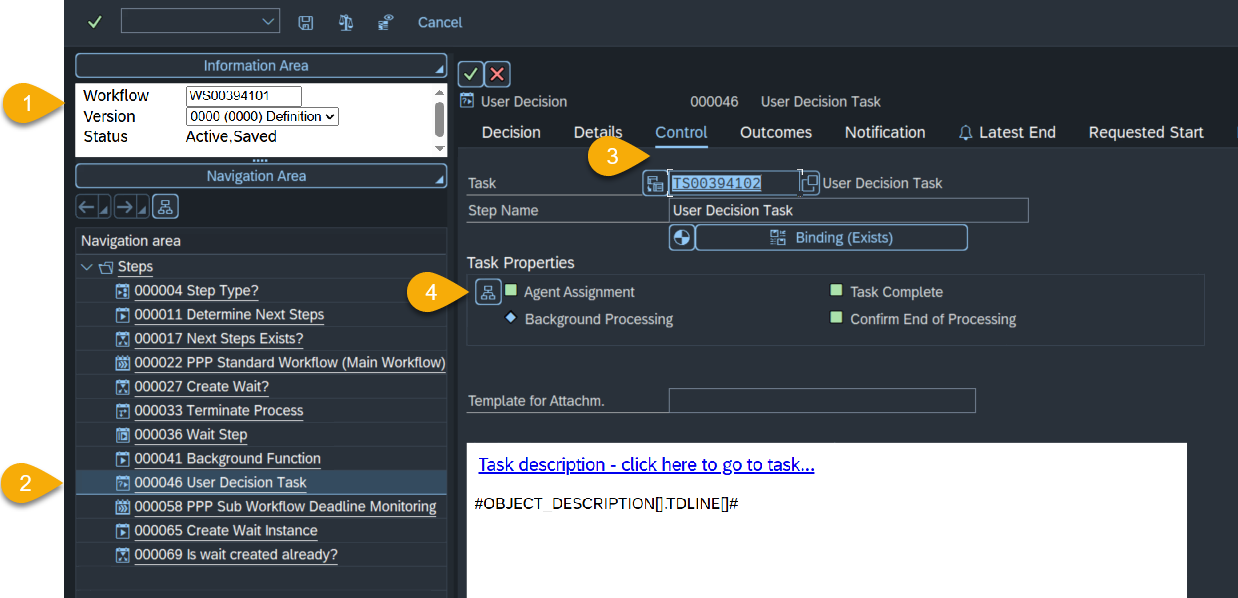

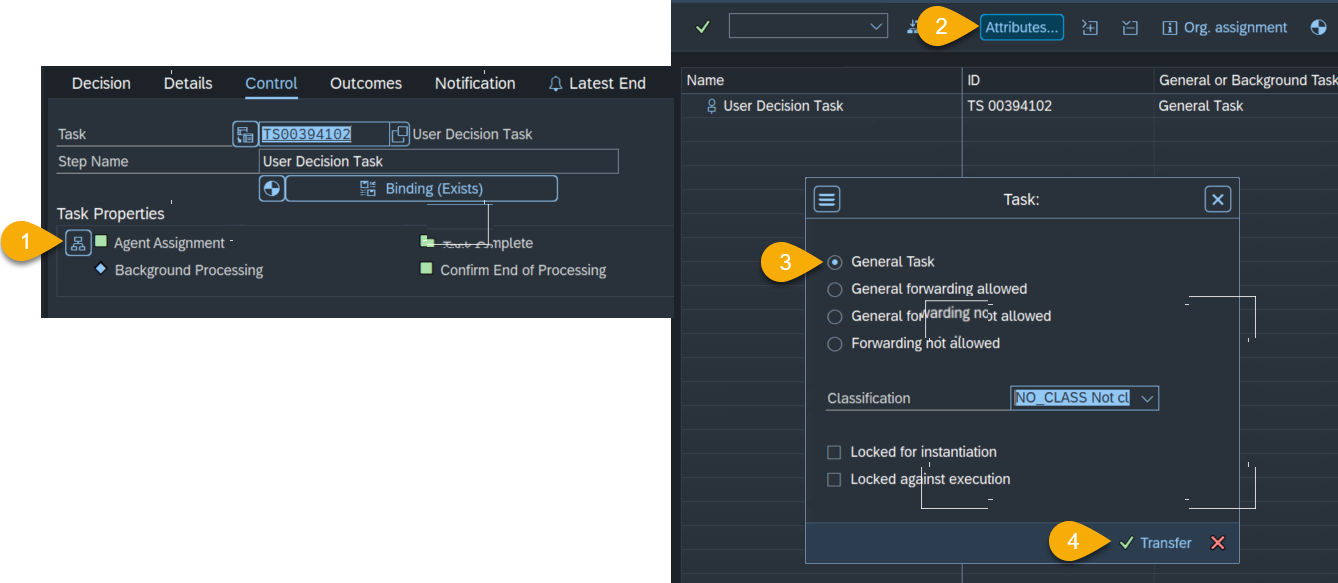

In transaction SWDD, open sub-workflow WS00394101 (version 0000)
- Select user decision task 000046
- Check in the Control tab that agent assignment is green

If the above settings are not green, perform corrective configuration or ensure missing transports/customizing are properly moved and activated

Keywords

WF-BATCH, workflow setup, SWU3, SWDD, PPP workflow, agent assignment, event binding, SAP workflow configuration
