Customizing Fields - Forms, Sections and FieldGroups

Customizing Fields - Forms, Sections and FieldGroups

Problem

You are not satisfied with the default PPP customizing and would like to add/remove Forms, Sections and FieldGroups as well as their corresponding fields from the Basic Field Configuration.

Environment

PPP BRF+ Customizing

Prerequisites

A new BRF+ application according to Creation of Customer BRF+ Application has been created and a Field has been added to the Basic Field Config according to Customizing Fields - Basic Field Config.

Solution

Step 1: Assigning Fields to a FieldGroup

Open your BRF+ Application and navigate to the expression table “Field Group Control” (Technical Name: FIELDGROUP_CONTROL).

  • Field Group ID: Enter any ID for your Field Group. This ID is later used to assign Field Groups to Sections.

  • Field ID: Enter the Field ID of the Field you want to have inside the Field Group. This Field ID has to exist in the “Basic Field Config” (Technical Name: BASIC_FIELDCONFIGURATION) expression table.

  • Field Label Text ID: Enter any Text ID (Used in “Translatable Texts”, Technical Name: TEXTS). The Text of the Text ID will be used as the Label for the Field Group.

  • Mandatory: Marks the field as mandatory. If set to true, validations are called, which check if the field is filled before saving in the PPP UI.

  • Read Only: Marks the field as read only. If set to true, the field can not be changed inside this FieldGroup.

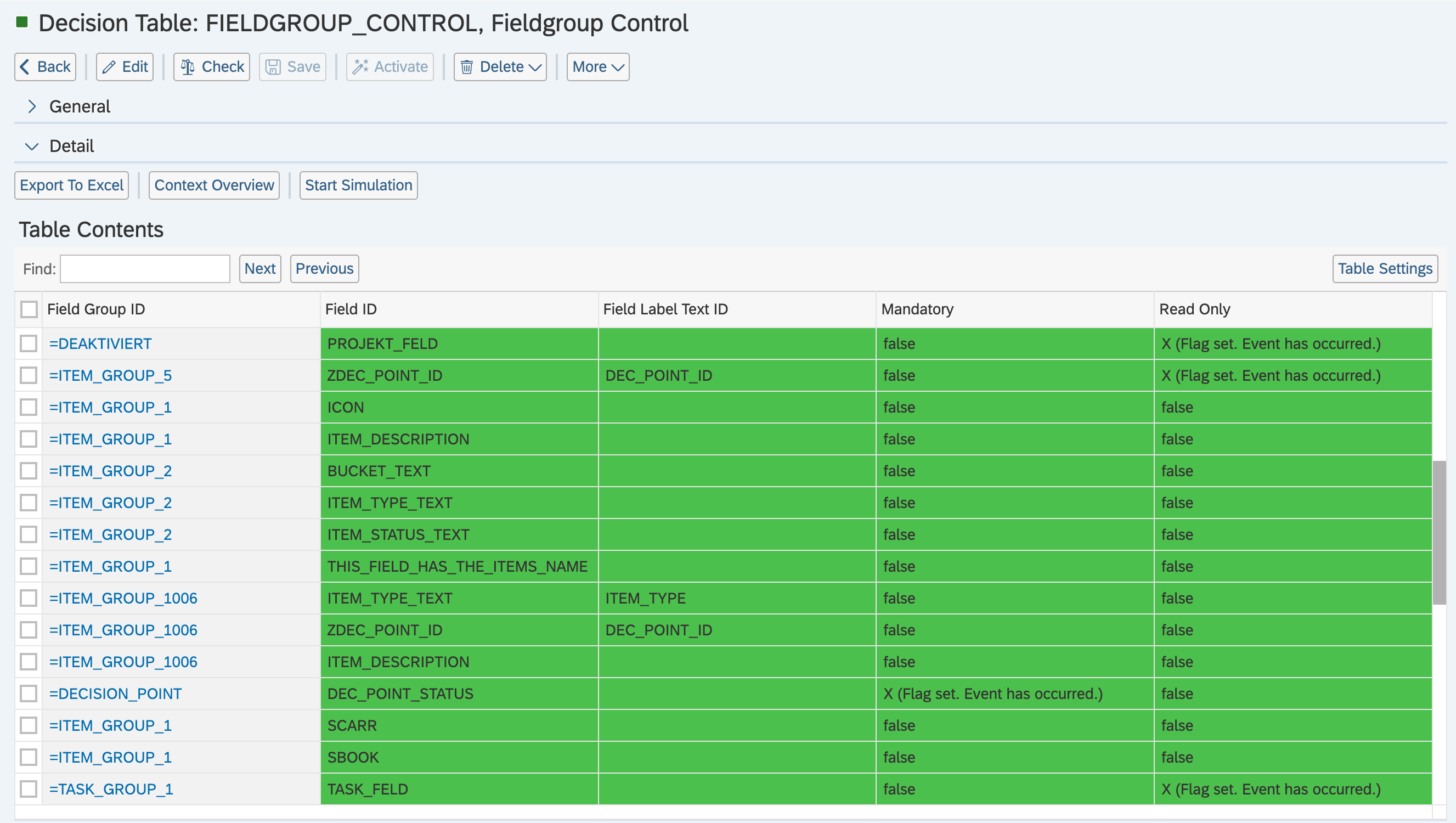

An example of a “FieldGroup” customization:

Step 2: Assigning FieldGroups to a Section

Open your BRF+ Application and navigate to the expression table “Section Control” (Technical Name: SECTION_CONTROL).

  • Section ID: Enter any ID for your Section. This ID is later used to assign Sections to Forms.

  • Field Group ID: Enter the FieldGroup ID of the FieldGroup you want to have inside the Field Group. This FieldGroup ID has to exist in the “Field Group Control” (Technical Name: FIELDGROUP_CONTROL) expression table.

  • Field Grp. Head. ID: Enter any Text ID (Used in “Translatable Texts”, Technical Name: TEXTS). The Text of the Text ID will be used as the Header of the Section.

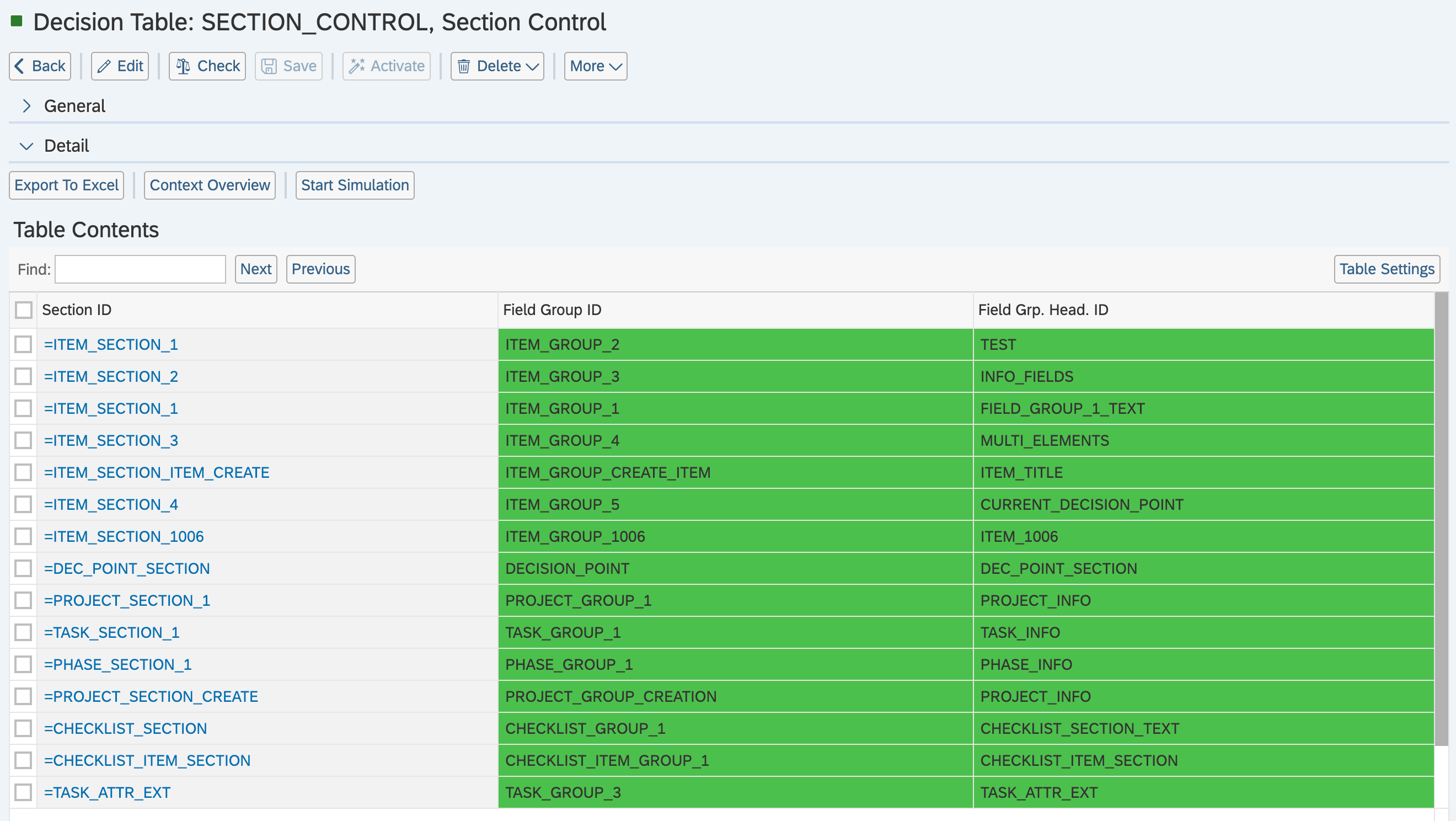

An example of a “Section” customization:

Step 3: Assigning Sections to a Form

Open your BRF+ application and navigate to one of the following expression tables, depending on which entity the form belongs to.

Entity TypeExpression TableTechnical Name
ItemForm Control ItemFORM_CONTROL_ITEM
Decision PointForm Control DPFORM_CONTROL_DECISION_POINT
ProjectForm Control ProjectFORM_CONTROL_PROJECT
PhaseForm Control PhaseFORM_CONTROL_PHASE
TaskForm Control TaskFORM_CONTROL_TASK
ChecklistForm Control ChecklistFORM_CONTROL_CHECKLIST
Checklist ItemForm Control Checklist ItemFORM_CONTROL_CHECKLIST_ITEM
RoleForm Control RoleFORM_CONTROL_ROLE

Each of these expression tables has its own unique input columns according to fields of that entity. The output remains the same for all of the FormControl Expression tables:

  • Section ID: Enter any ID for your Section. This Section ID has to exist in the “Section Control” (Technical Name: SECTION_CONTROL) expression table.

  • Section Headline Text ID: Enter any Text ID (Used in “Translatable Texts”, Technical Name: TEXTS). The Text of the Text ID will be used as the Header of the Form.

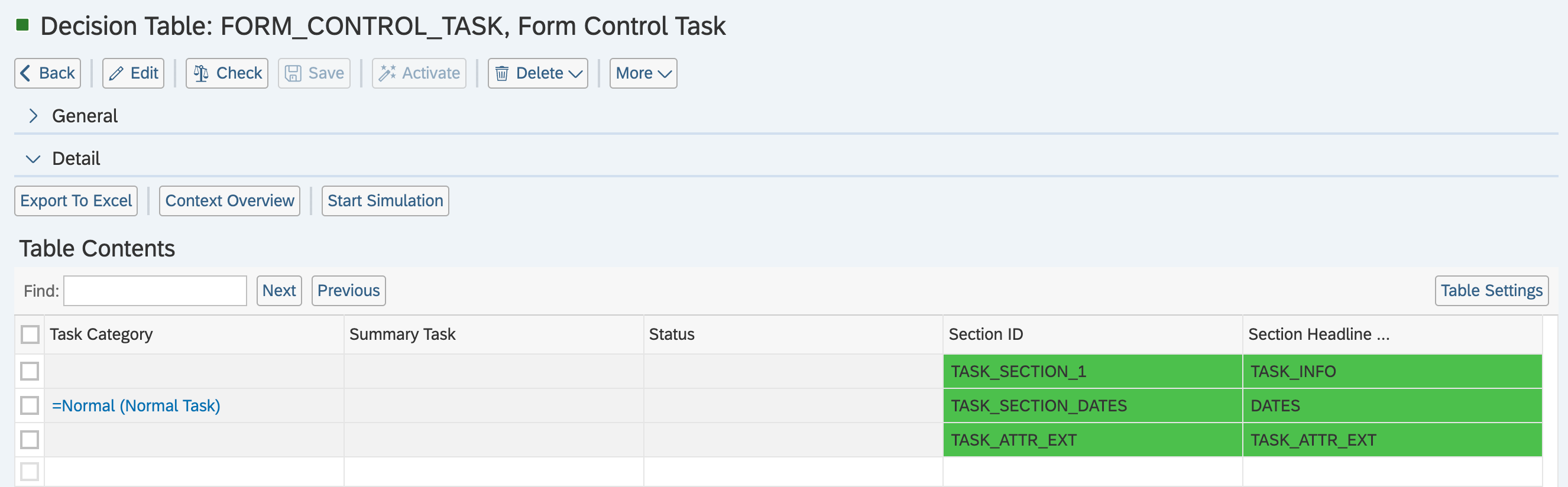

An example of a “Form Control Task” customization:

See Also

Keywords

brf+, add, form, section, fieldgroup, fields
